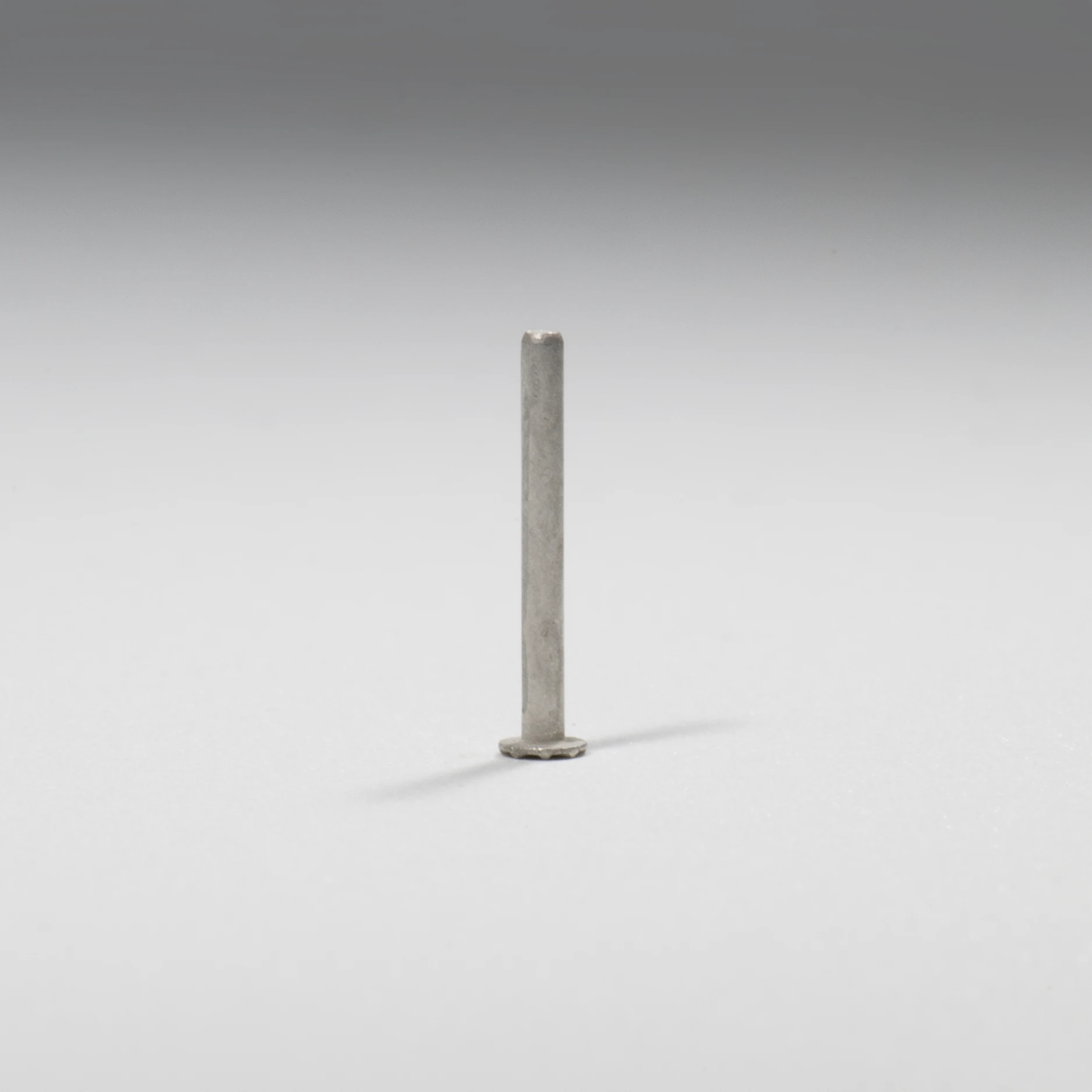

.060" dia., Star Base

Features & Benefits
  • Can be made to different lengths and are offered in .040”, 060”, and .080” diameters
  • Don’t require orientation, placement is on a round pad
  • Can be randomly placed
  • Pins don’t float during reflow
  • Reliably perpendicular
  • Designed for automation using the customer’s existing pick and place equipment and a special feeder – no time consuming hand placement or costly fixturing required
  • Can be automated using standard tape feeders
Item added to cart View Cart Checkout
Information
SKU: A3-XXX
Categories:
Share:
Specification
Material Type

C11000 Copper

Finish Specification

100% Matte Tin over Copper (0)

Current Rating

20 Amperes

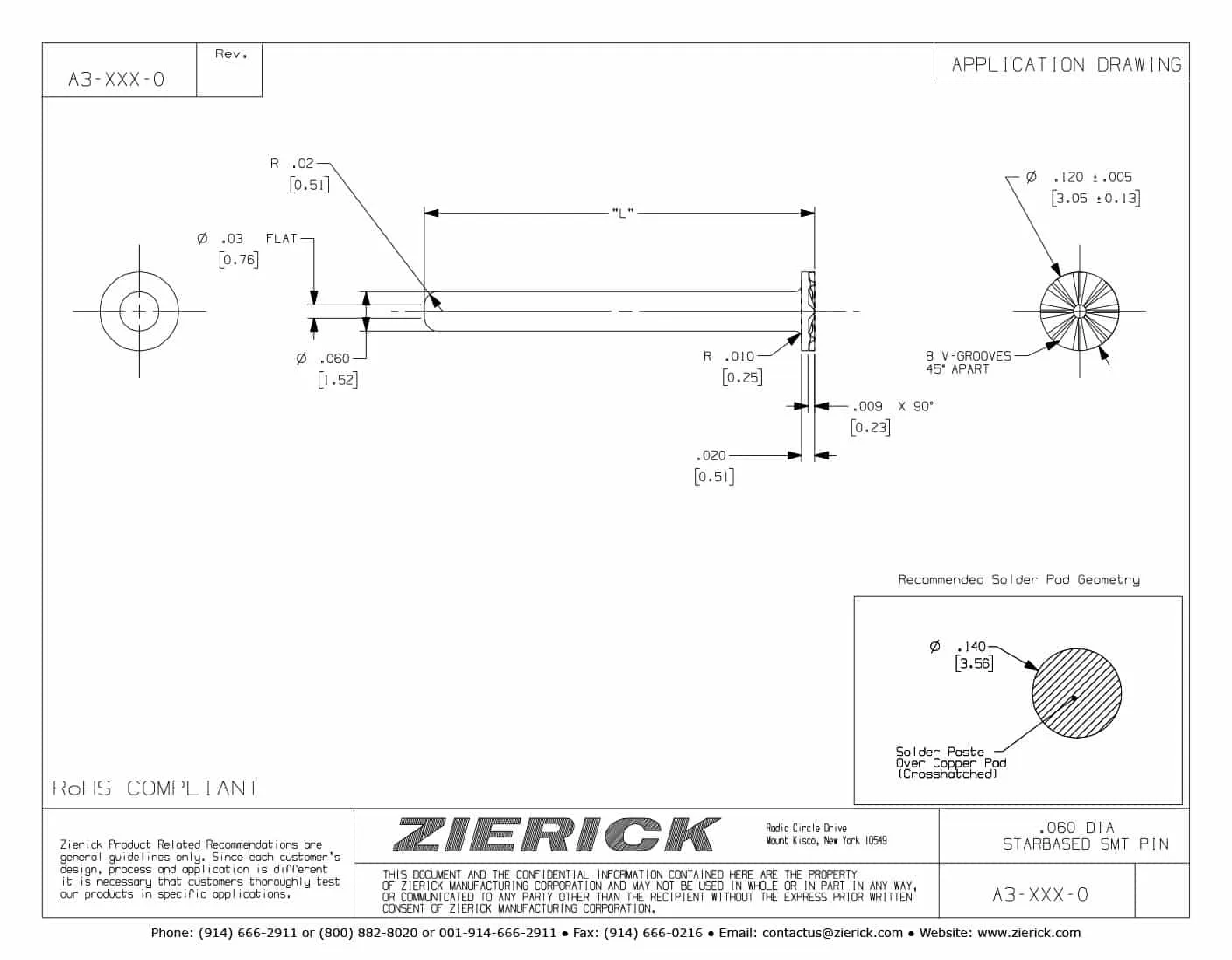

D

0.060in (1.52mm)

D1

0.120" ±0.005" (3.05mm±0.127mm)

Pad

B

Patent

U.S. Patent Nos. 5, 632, 629, 5, 695, 348, 5, 730, 608, 5, 816, 868 and other U.S. and international patents

Notes

Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department.

Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
