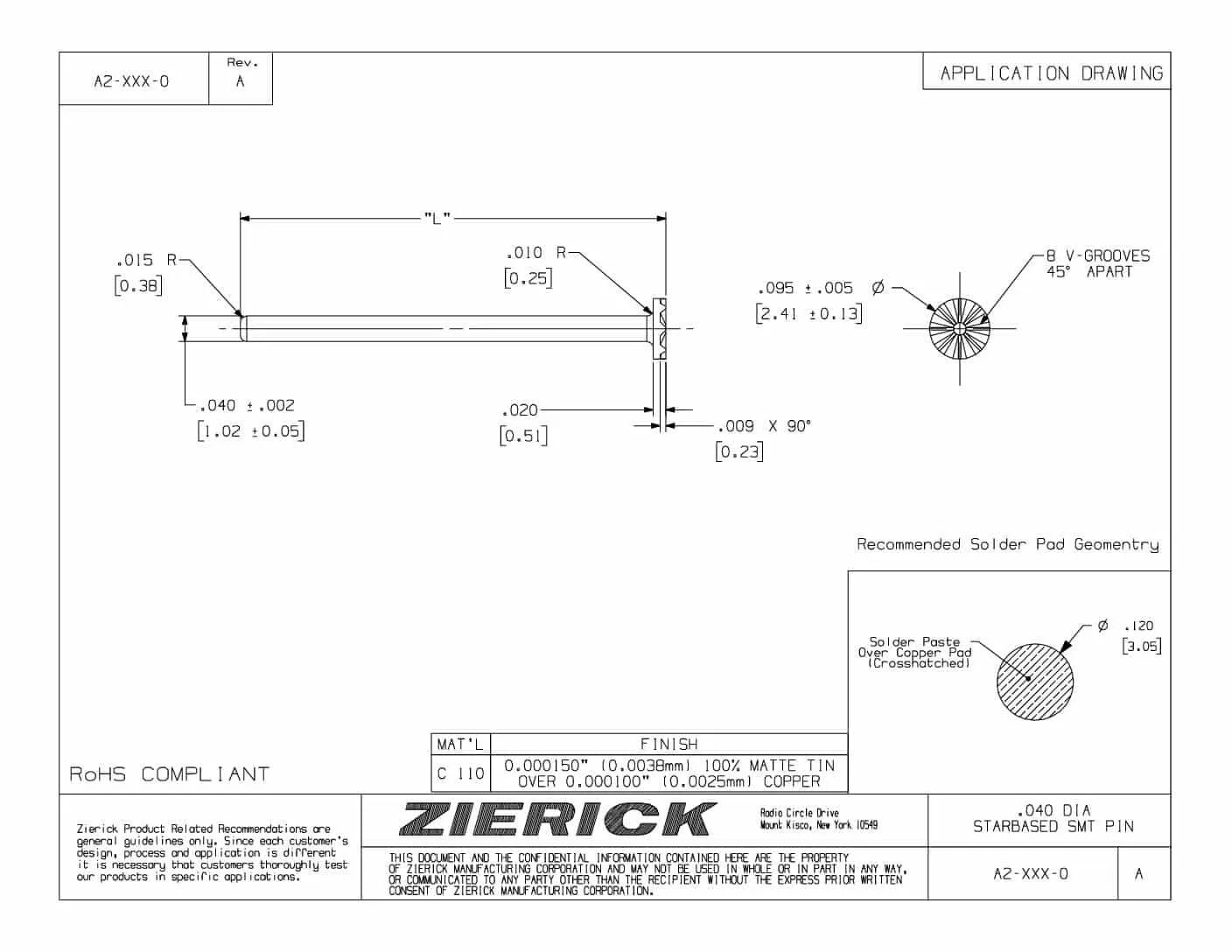

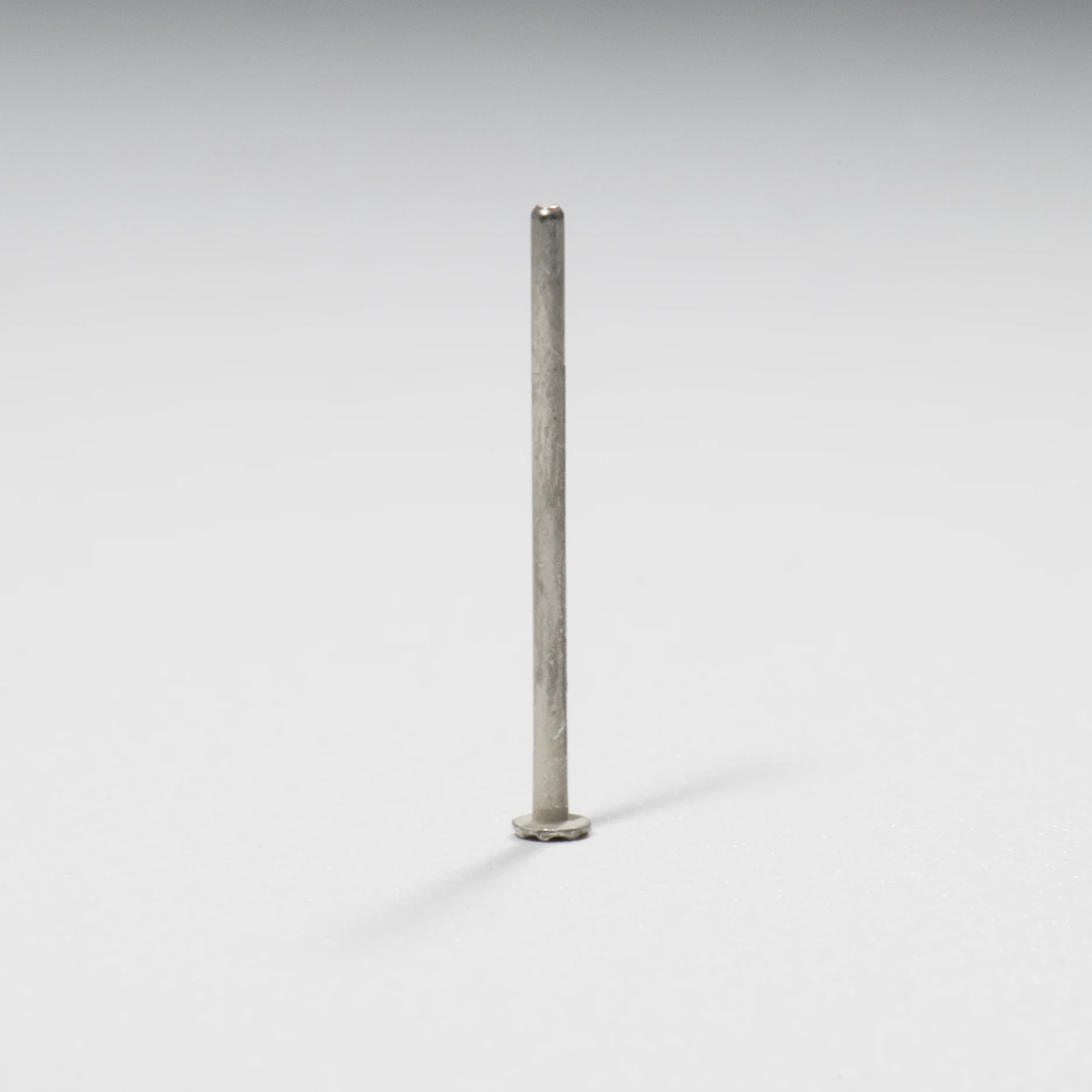

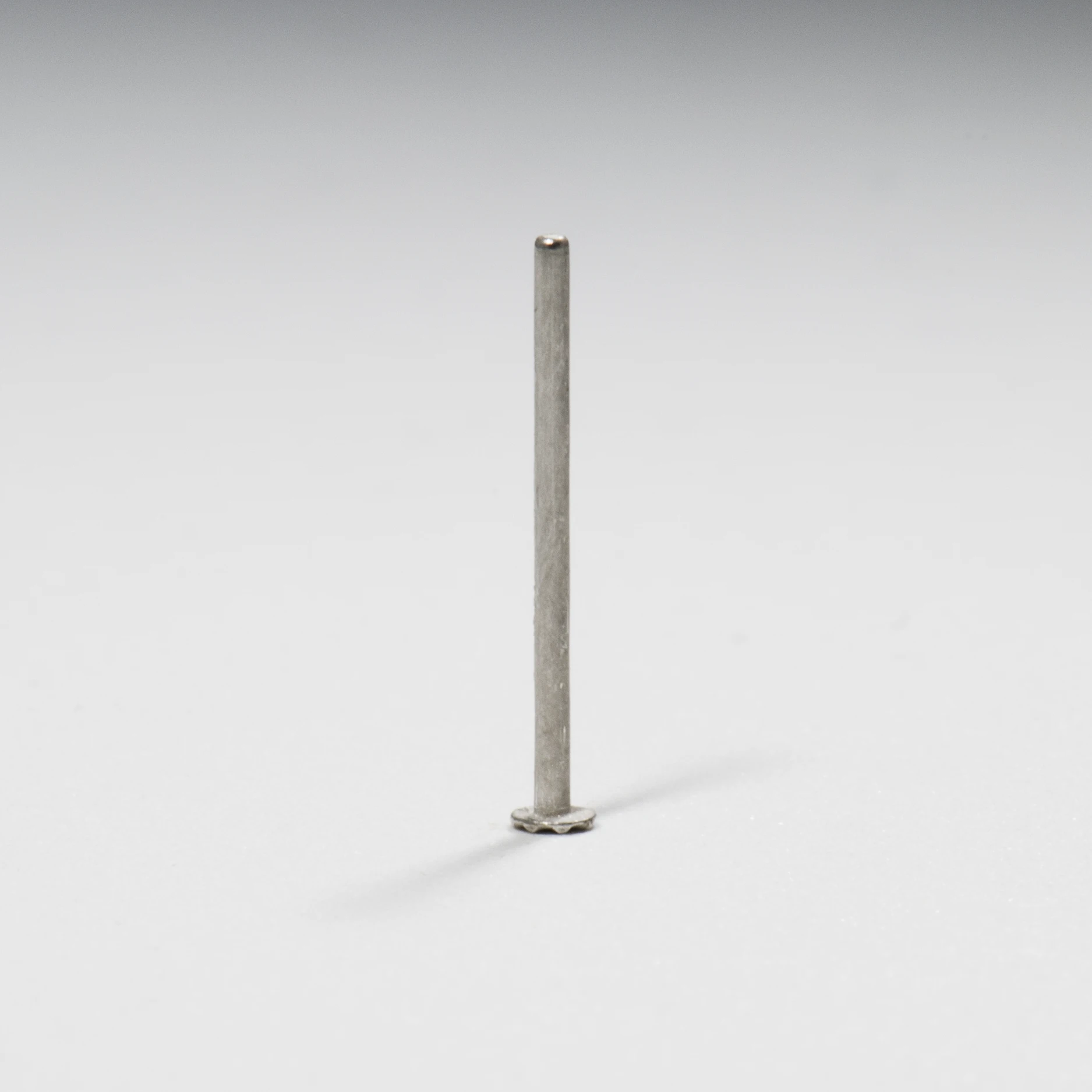

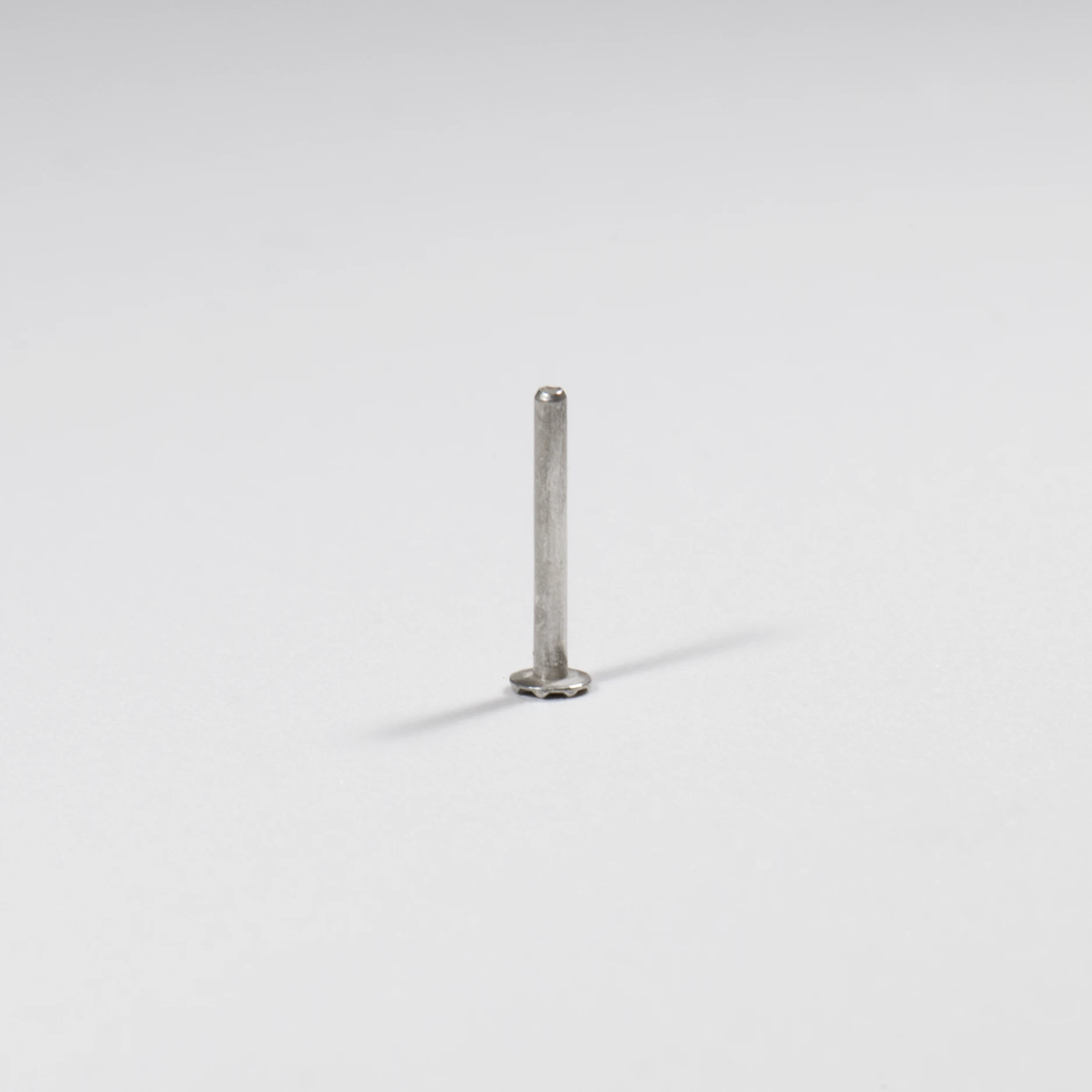

.040" dia., Star Base
Features & Benefits
- Can be made to different lengths and are offered in .040”, 060”, and .080” diameters
- Don’t require orientation, placement is on a round pad
- Can be randomly placed
- Pins don’t float during reflow
- Reliably perpendicular
- Designed for automation using the customer’s existing pick and place equipment and a special feeder – no time consuming hand placement or costly fixturing required
- Can be automated using standard tape feeders
Specification
| Material Type | C11000 Copper |
|---|---|
| Finish Specification | 100% Matte Tin over Copper (0) |
| Current Rating | 15 Amperes |
| D | 0.040in (1.02mm) |
| D1 | 0.095" ±0.005" (2.41mm±0.127mm) |
| Pad | A |
| Patent | U.S. Patent Nos. 5, 632, 629, 5, 695, 348, 5, 730, 608, 5, 816, 868 and other U.S. and international patents |
| Notes | Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department. |
