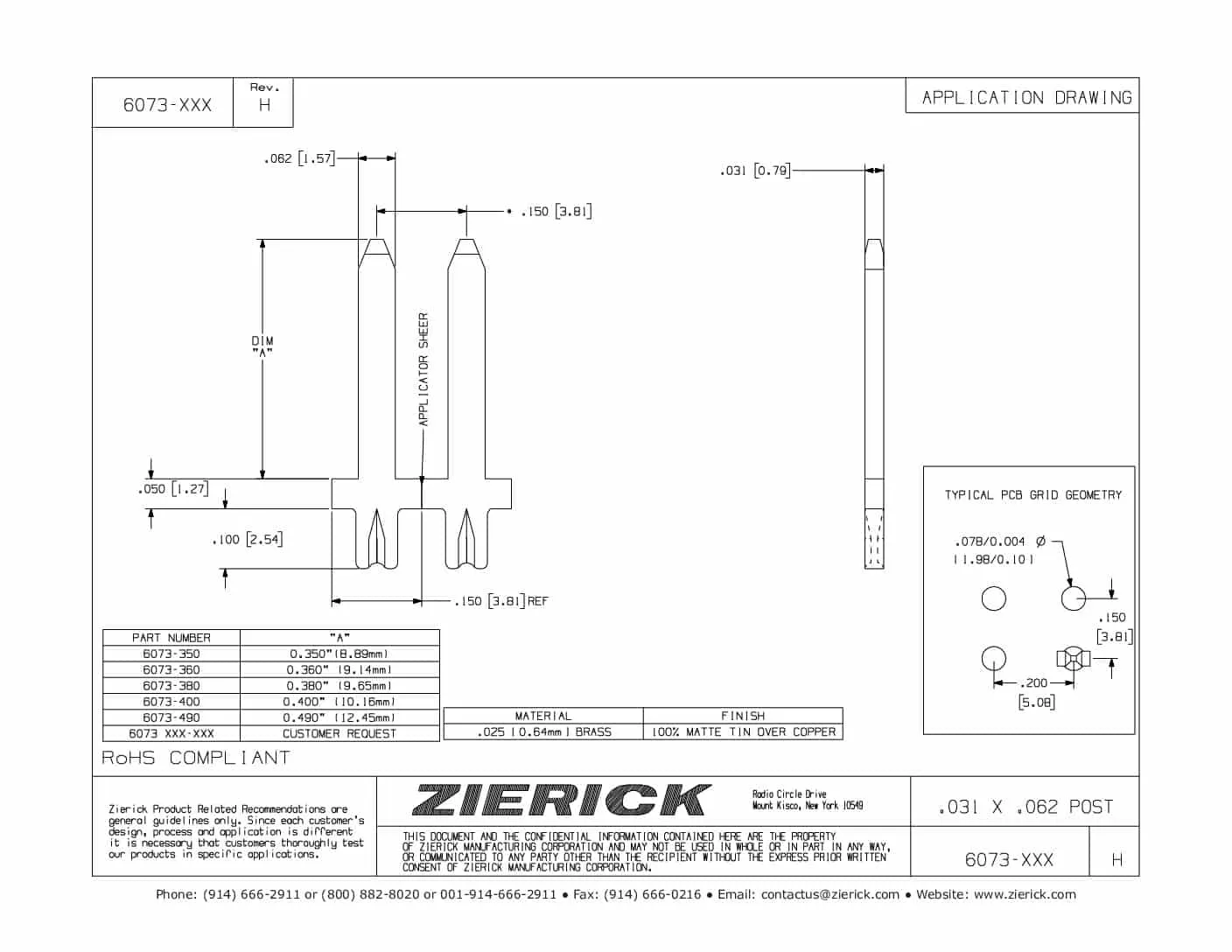

.032" Thick
Features & Benefits
Specification
| Packaging Type | Reeled |
|---|---|
| Material Type | C26000 Brass |
| Material Thickness | 0.032in (0.81mm) |
| Standard Finish | 100% Matte Tin over Copper (0) |
| Current Rating | 10 Amperes |
| Mounting Type | Split Leg Splay |
| Mounting Hole Diameter | 0.078" (1.98mm) |
| Applicator System | Model 9700, 9700 XY |
