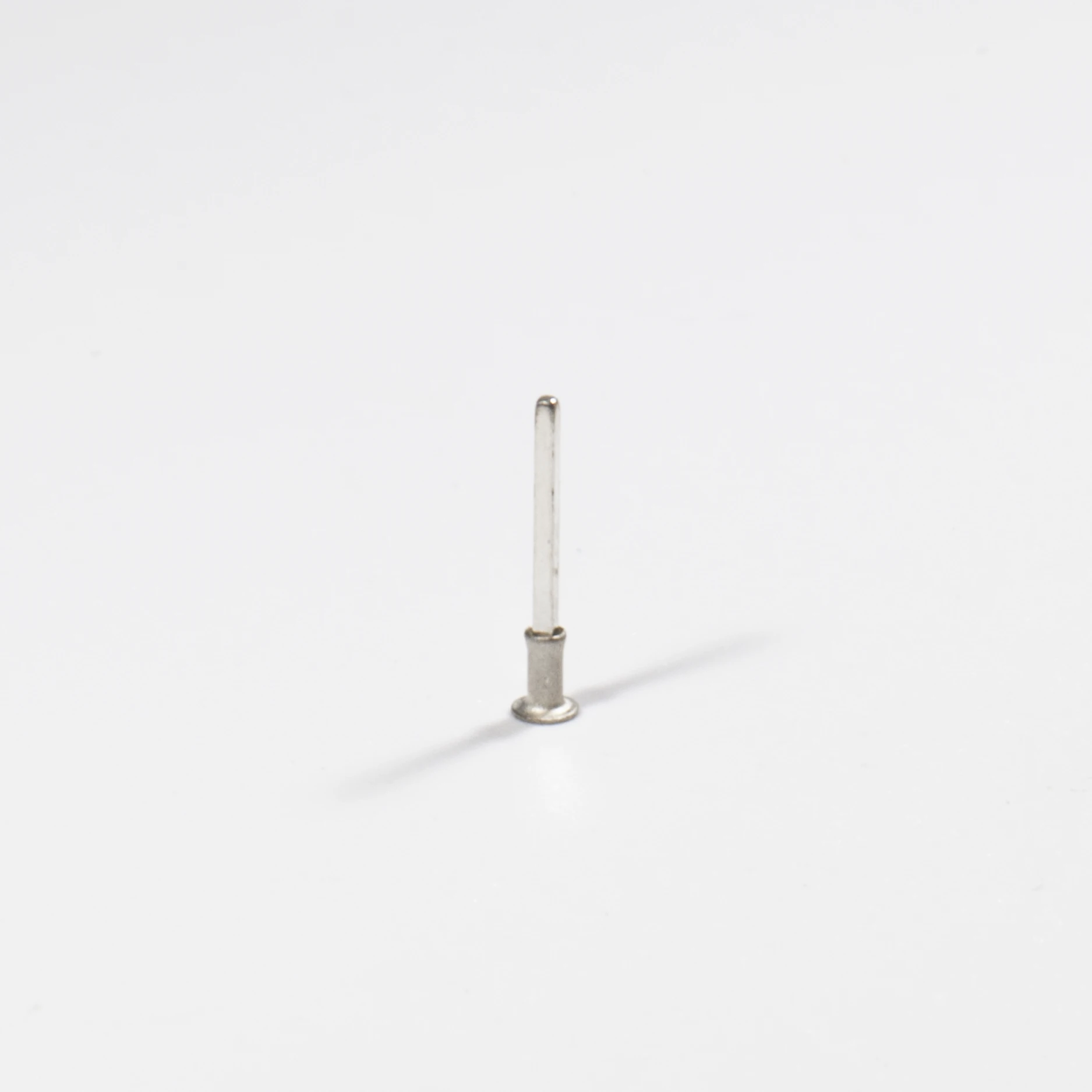

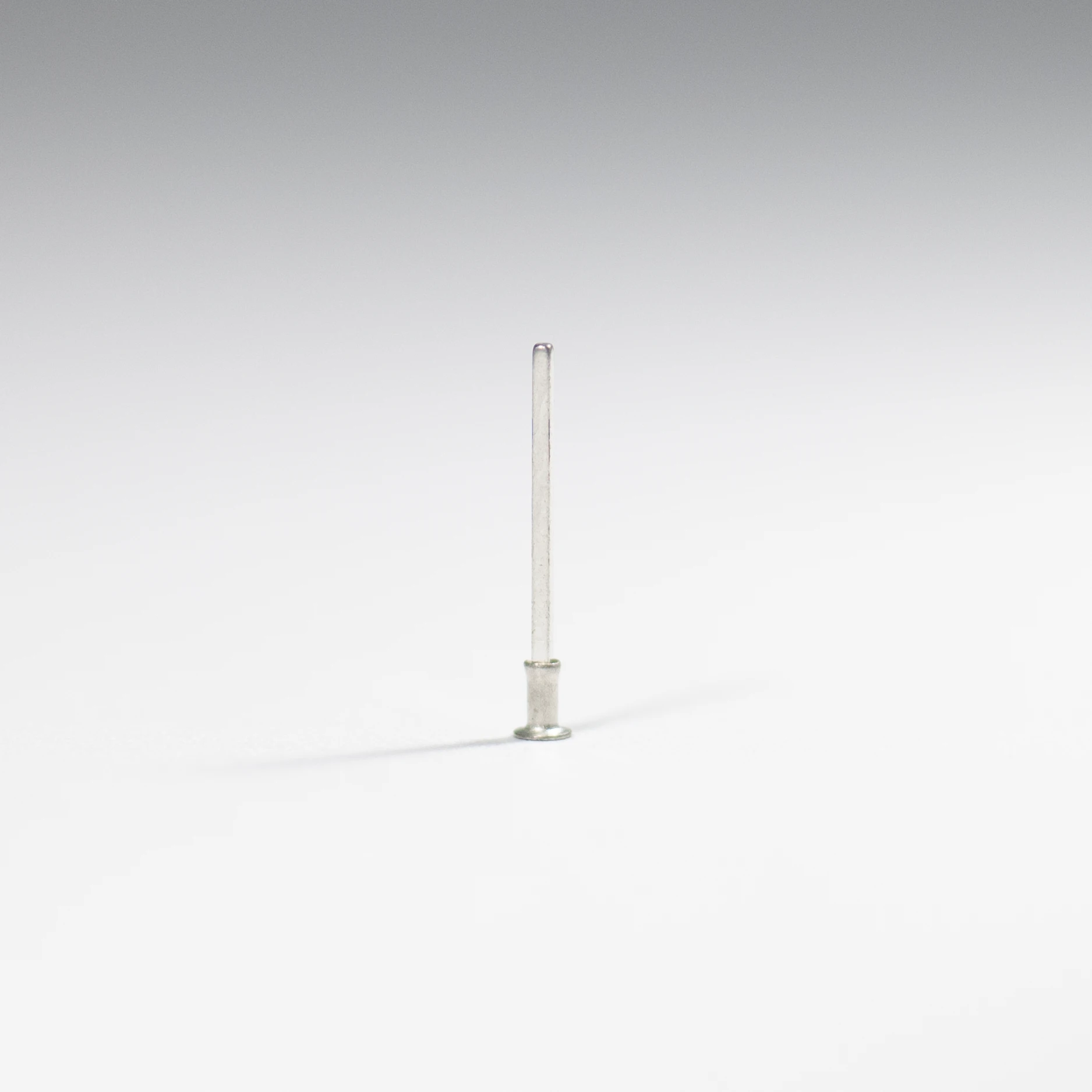

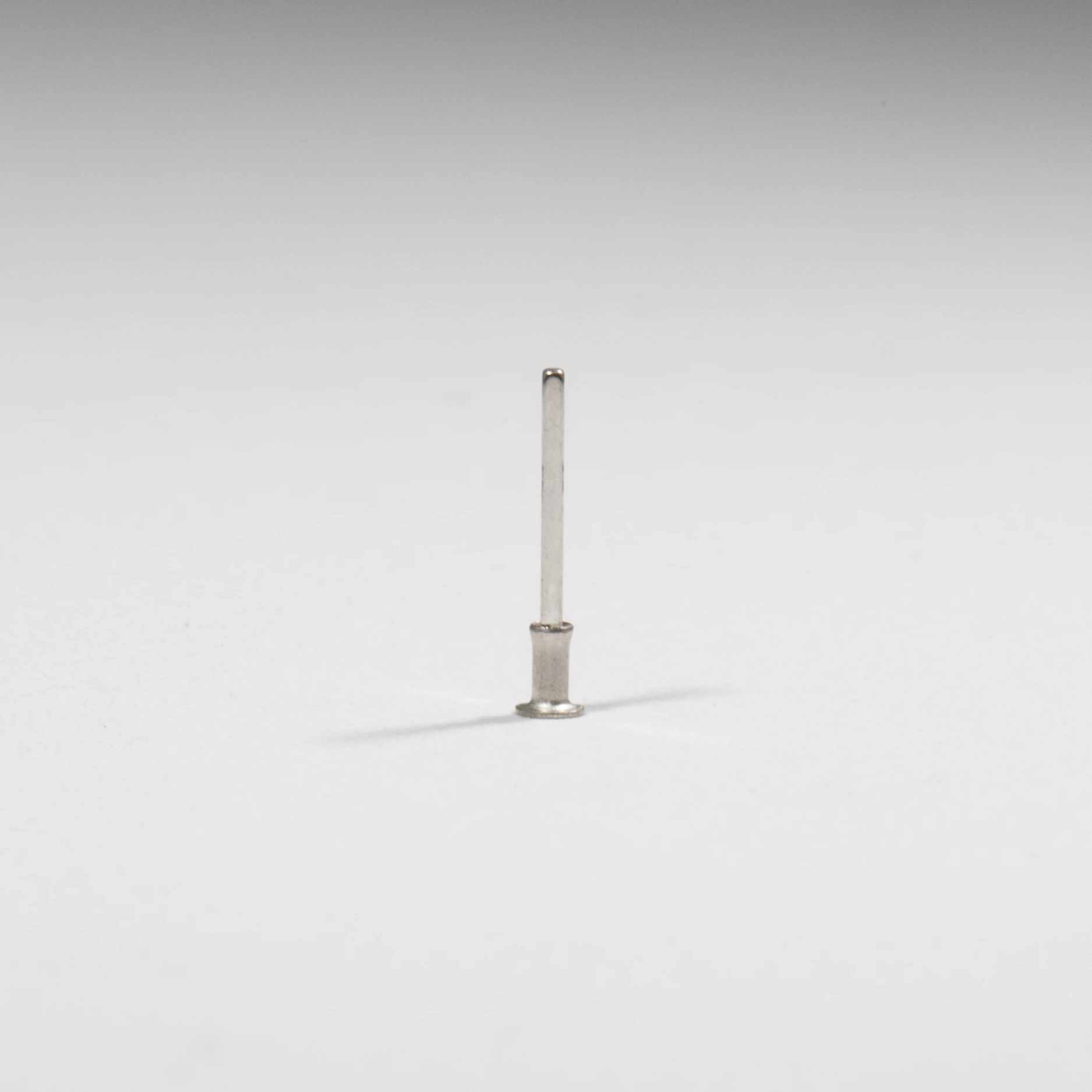

.025" dia.

Features & Benefits
  • Individual pins can be randomly placed
  • Pins are reliably perpendicular
  • Available in many lengths
  • Can be selectively plated – base can be plated for solderability while pin is plated for connectivity
  • Designed for automation using the customer’s existing pick and place equipment and a special feeder – no time consuming hand placement or costly fixturing required
  • Can be automated using standard tape feeders
Item added to cart View Cart Checkout
Information
SKU: A1-XXX
Categories:
Resources
Share:
Specification
Packaging Type

Loose

Standard Finish

100% Matte Tin over Copper (0)

Current Rating

8/Pin

Pin Width

0.250in (6.35 mm) Square

Patent

U.S. Patent Nos. 5, 632, 629, 5, 816, 868 and other U.S. and international patents

Notes

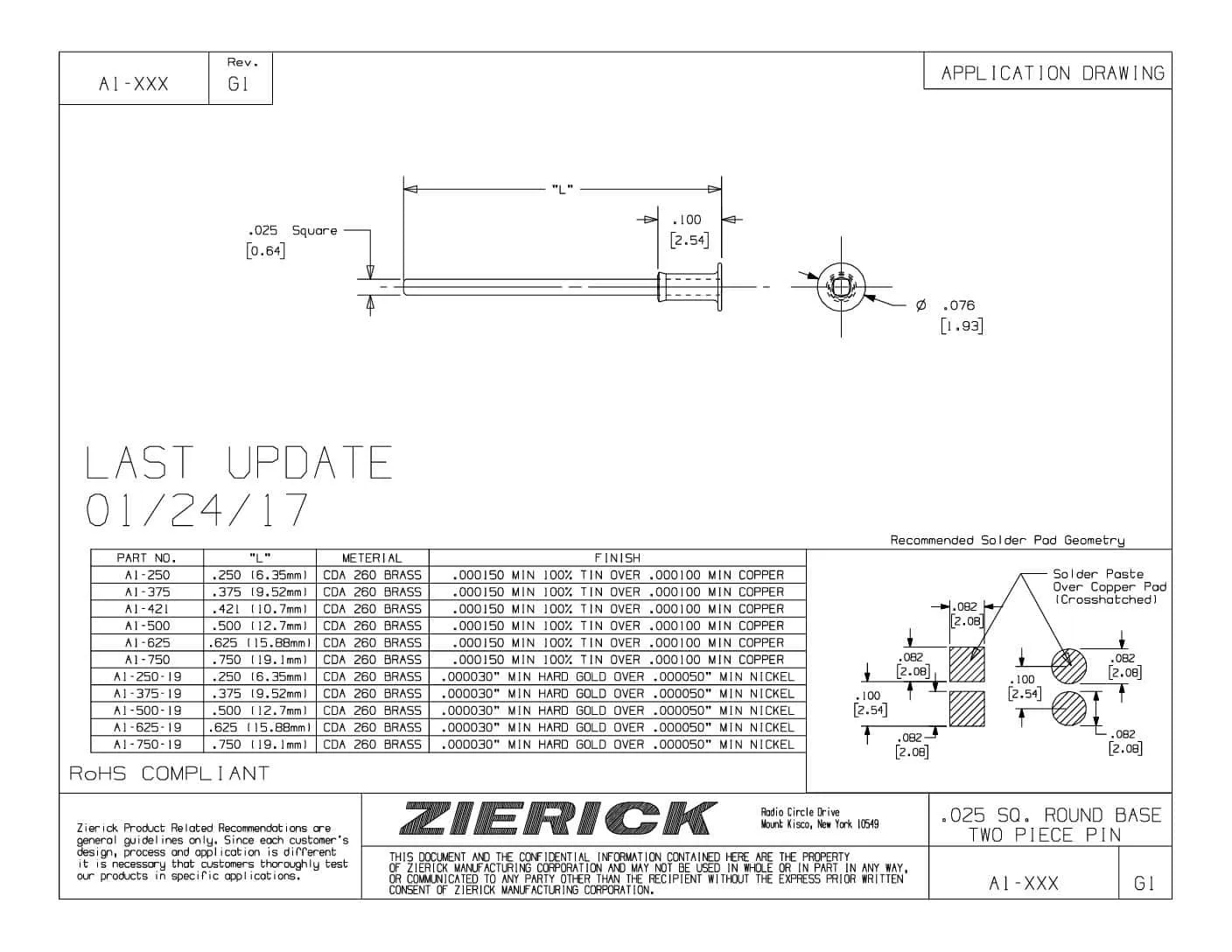

Zierick recommends .006" (0.15mm) stencil thickness for most applications. For other stencil thicknesses, call Zierick's product development department.

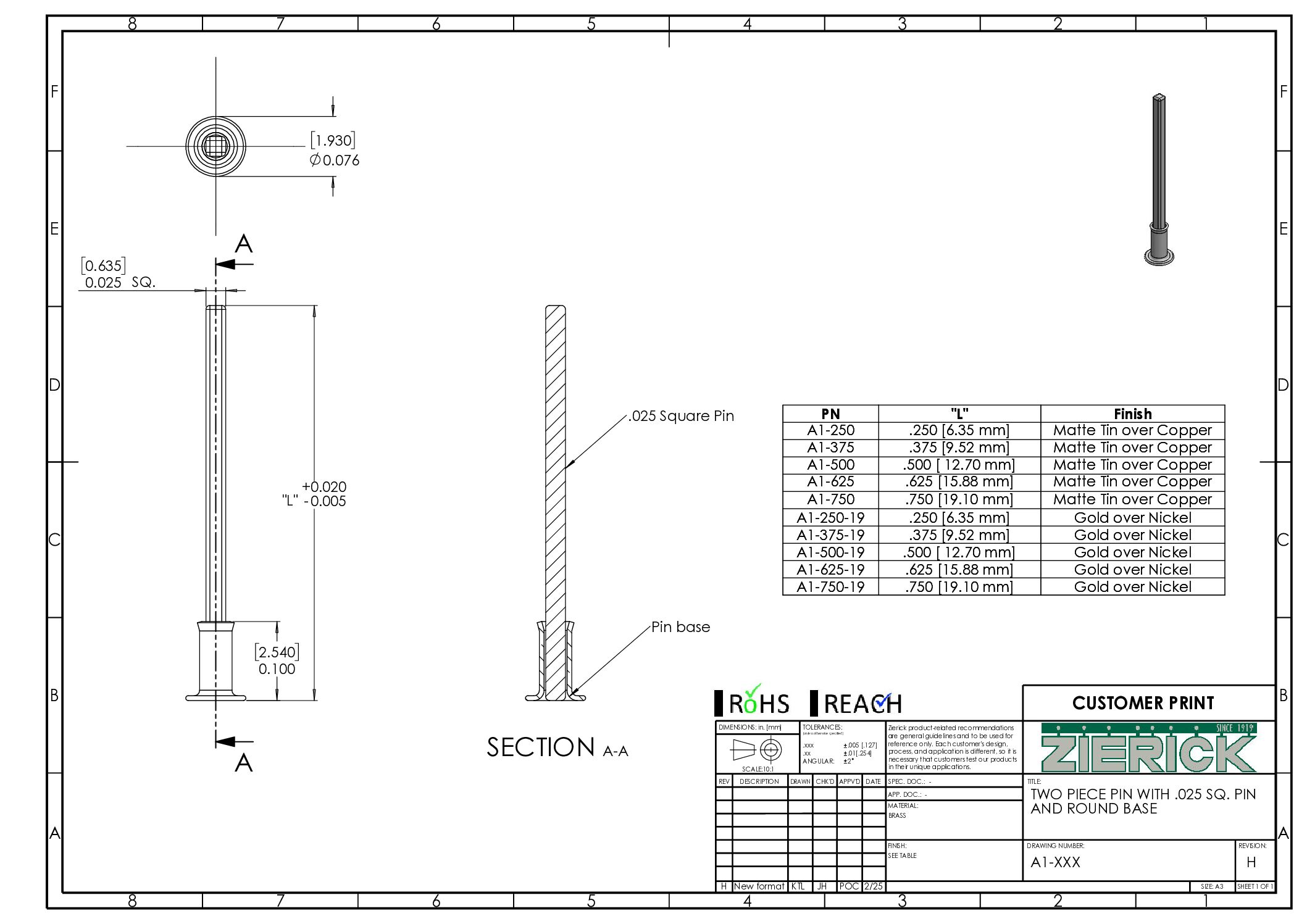

Product specifications listed on the website, catalog, or any documents that may fall under the category of promotional literature are subject to change without notice without creating liability to Zierick Manufacturing Corporation. Please contact us for the most current prints and dimensions.
